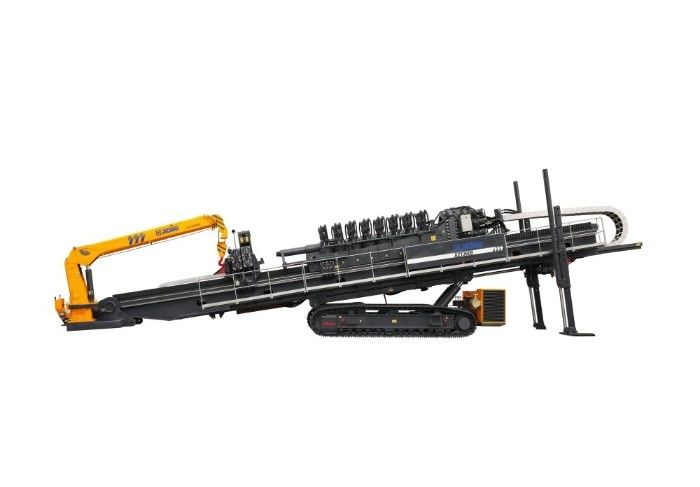

Precision XZ13600 Horizontal Directional Drilling Rig 15000kN Peralatan HDD

Tempat Asal:Cina

Nama merek:Rongchang Machinery

Jumlah Pesanan Minimum:1 PC

Harga:Dapat dinegosiasikan

Ketentuan Pembayaran:L/C, T/T, dll.

Detail Produk

Menyoroti:

xz13600 rig pengeboran arah horizontal

,

Peralatan hdd 15000kn

,

Pengeboran arah horizontal 15000kn

Deskripsi Produk

Rongchang Machinery Horizontal Directional Drill Peralatan Pengeboran Presisi

Konfigurasi parameter

proyek	unit	XZ13600
mesin	-	M15
daya nominal	kW/r/menit	3×472/1800
Kekuatan dorongan dan tarik balik maksimum	kN	15000
Kecepatan dorongan dan tarik balik maksimum	m/menit	32
Torsi	N·m	260000
Kecepatan maksimum	r/menit	100
Aliran maksimum	L/menit	eksternal
tekanan terbesar	MPa	10
Pipa bor	mm × m	φ219/φ254 × 9.6
Berat angkat	t	10
Saat angkat	t·m	25
Sudut penetrasi maksimum	°	16
kualitas	t	135
Dimensi	mm	20000 × 3400 × 4700
Perhatikan	-	Opsional: 1. ruang operasi terpisah; 2. berputar semi-otomatis;
