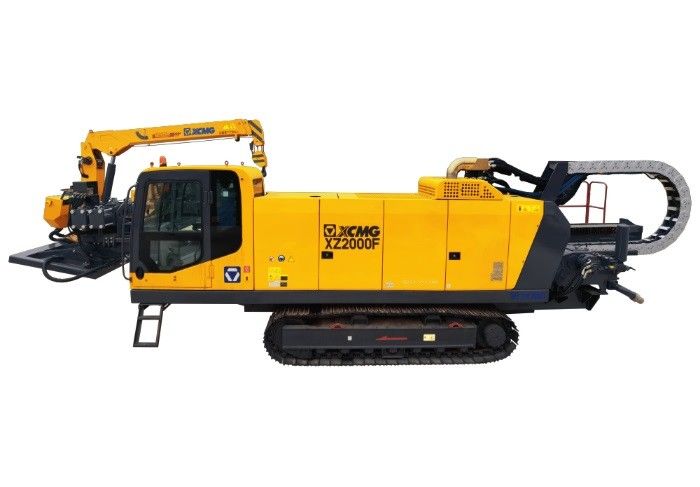

Mesin Pengeboran Berputar XZ2000F Hdd 10MPa Pengeboran Arah Hidraulik

Tempat Asal:Cina

Nama merek:Rongchang Machinery

Jumlah Pesanan Minimum:1 PC

Harga:Dapat dinegosiasikan

Ketentuan Pembayaran:L/C, T/T, dll.

Detail Produk

Menyoroti:

mesin bor xz2000f hdd

,

mesin bor hdd 10mpa

,

Pengeboran hidraulik arah 10mpa

Deskripsi Produk

Mesin pengeboran arah horizontal dengan teknologi canggih dan kontrol presisi oleh Rongchang Machinery

proyek	unit	XZ2000F
mesin	-
daya nominal	kW/r/menit	294/2100
Kekuatan dorongan dan tarik balik maksimum	kN	2000
Kecepatan dorongan dan tarik balik maksimum	m/menit	45
Torsi	N·m	70000
Kecepatan maksimum	r/menit	105
Aliran maksimum	L/menit	800
tekanan terbesar	MPa	10
Pipa bor	mm × m	φ127 × 6
Berat angkat	t	3.2
Saat angkat	t·m	6.4
Sudut penetrasi maksimum	°	18
kualitas	t	29
Dimensi	mm	12000 × 2760 × 3550
Perhatikan	-	Opsional: 1. pompa lumpur semi-otomatis berputar 2.950L/menit;
