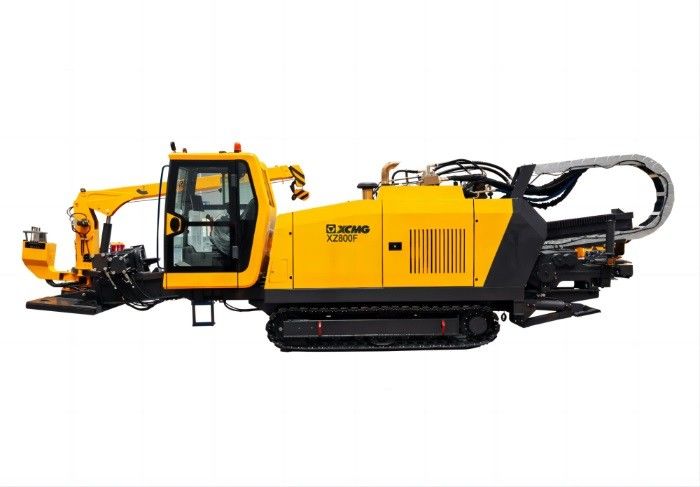

Kuning Rongchang Mesin Pengeboran Arah Horizontal Instalasi bawah tanah

Tempat Asal:Cina

Nama merek:Rongchang Machinery

Jumlah Pesanan Minimum:1 PC

Harga:Dapat dinegosiasikan

Ketentuan Pembayaran:L/C, T/T, dll.

Detail Produk

Menyoroti:

rongchang mesin pengeboran arah horizontal

,

mesin pengeboran arah horizontal bawah tanah

,

mesin pengeboran arah kuning

Deskripsi Produk

proyek	unit	XZ800F
mesin	-
daya nominal	kW/r/menit	213/2100
Maksimal dorongan&pullbackkekuatan	kN	880
Maksimaldorongan&pullbackkecepatan	m/menit	55
Torsi	N·m	35000
Kecepatan maksimum	r/menit	120
Aliran maksimum	L/menit	600
tekanan terbesar	MPa	10
Pipa bor	mm × m	φ89/φ102×4.5
Berat angkat	t	2
Saat angkat	t·m	4
Sudut penetrasi maksimum	°	20
kualitas	t	18
Dimensi	mm	10650 × 2450 × 2600
Perhatikan	-	Opsional: Peningkatan daya
