XZ500F Rig Pengeboran Arah 10mPa Rig Pengeboran Arah Horisontal

Tempat Asal:Cina

Nama merek:Rongchang Machinery

Jumlah Pesanan Minimum:1 PC

Harga:Dapat dinegosiasikan

Ketentuan Pembayaran:L/C, T/T, dll.

Detail Produk

Menyoroti:

xz500f pengeboran arah

,

Pengeboran arah 10mpa

,

Pengeboran arah horizontal 10mpa

Deskripsi Produk

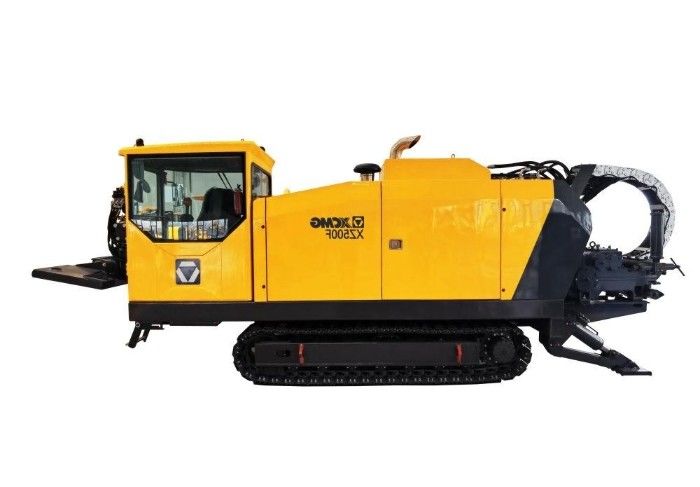

Mesin pengeboran arah horisontal Peralatan pengeboran lubang presisi oleh Rongchang Machinery

proyek	unit	XZ500F
mesin	-
daya nominal	kW/r/menit	194/2200
Kekuatan dorongan dan tarik balik maksimum	kN	500
Kecepatan dorongan dan tarik balik maksimum	m/menit	55
Torsi	N·m	27000
Kecepatan maksimum	r/menit	140
Aliran maksimum	L/menit	600
tekanan terbesar	MPa	10
Pipa bor	mm × m	φ89 × 3 / 4.5
Berat angkat	t	Pilihan: 2
Saat angkat	t·m	Pilih: 4
Sudut penetrasi maksimum	°	20
kualitas	t	14.5
Dimensi	mm	7500 × 2280 × 2610
Perhatikan	-	Opsional: 1. anti beku lumpur; 2. peningkatan daya; 3. pompa lumpur 800L 4. derek yang dipasang di truk;
