Detail Produk
Menyoroti:
Pengeboran arah pipa bawah tanah
,Pengeboran arah pipa xz450f
,xz450f pengeboran hidraulik arah
Deskripsi Produk

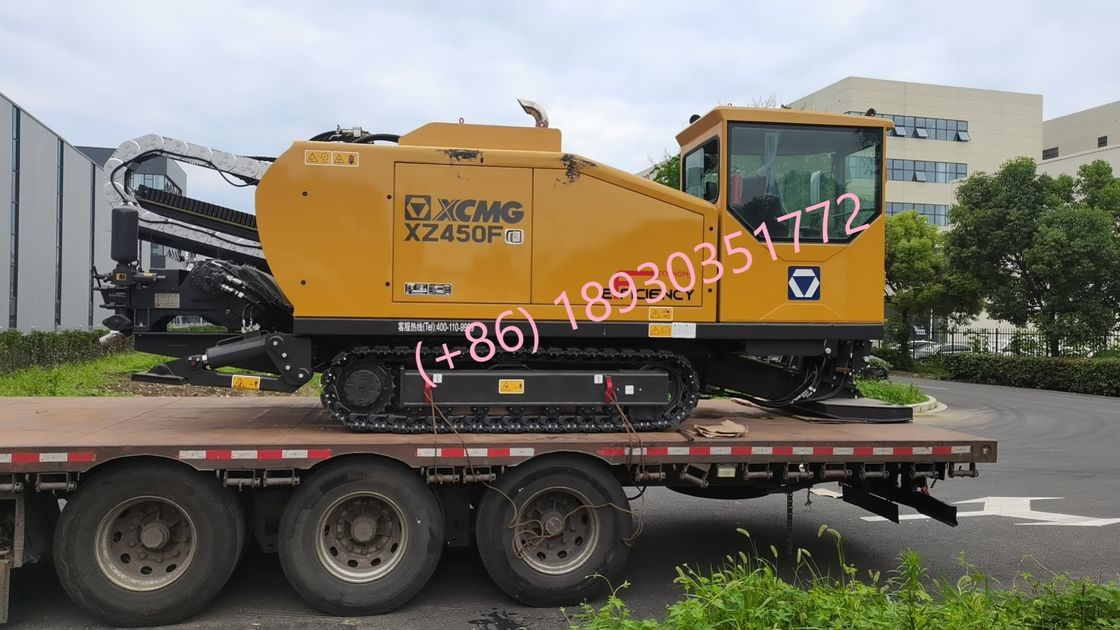

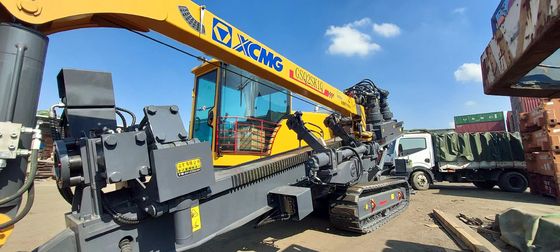

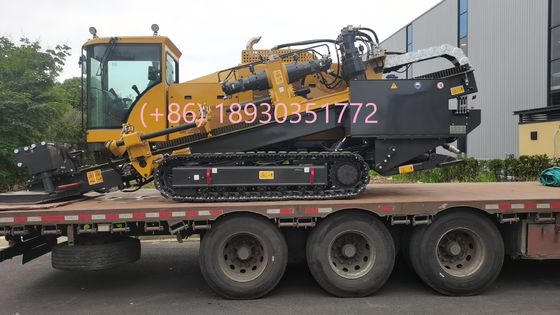

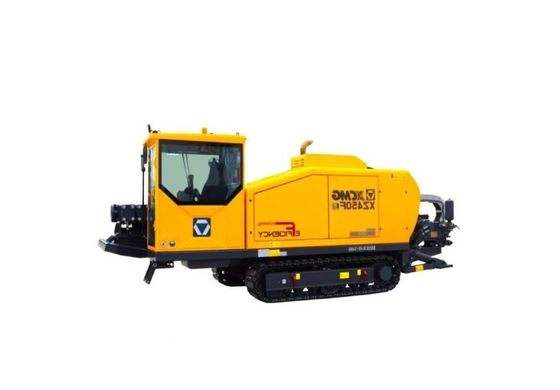

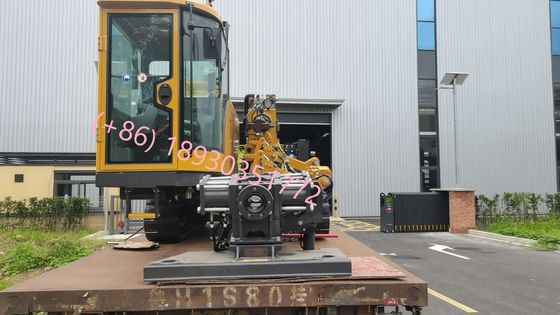

Mesin pengeboran arah untuk instalasi pipa bawah tanah oleh Mesin Rongchang
| proyek | unit | XZ450F |
| mesin | - | |
| daya nominal | kW/r/menit | 177/2200 |
| Kekuatan dorongan dan tarik balik maksimum | kN | 450 |
| Kecepatan dorongan dan tarik balik maksimum | m/menit | 50 |
| Torsi | N·m | 20000 |
| Kecepatan maksimum | r/menit | 140 |
| Aliran maksimum | L/menit | 450 |
| tekanan terbesar | MPa | 8 |
| Pipa bor | mm × m | φ83×3 |
| Berat angkat | t | ️ |
| Saat angkat | t·m | ️ |
| Sudut penetrasi maksimum | ° | 20 |
| kualitas | t | 12.5 |
| Dimensi | mm | 6500 × 2250 × 2450 |
| Perhatikan | - | Opsional: 1. pegangan otomatis penuh; 2. penggantungan ganda; 3. antibeku lumpur; 4. pistol air pembersih; 5. pompa lumpur 600L; 6. motor torsi tinggi kecepatan rendah 7. konfigurasi peningkatan daya |
