kualitas Precision Underground Directional Drilling Mesin Pengeboran Arah Horizontal Kuning pabrik

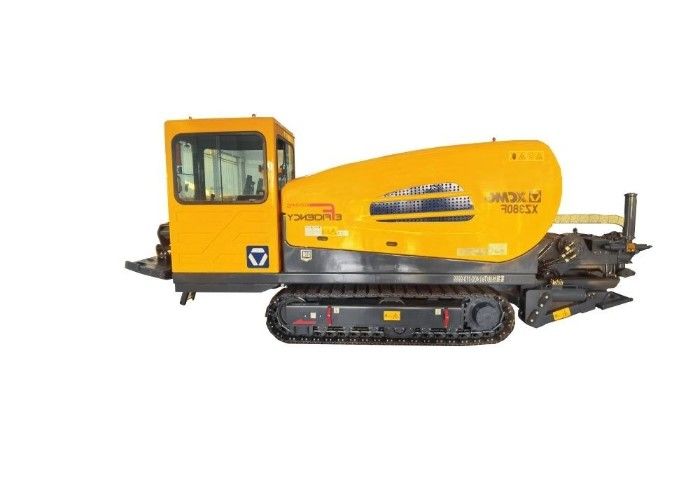

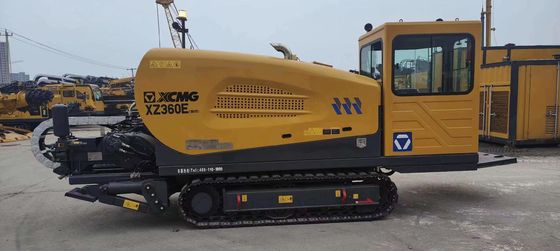

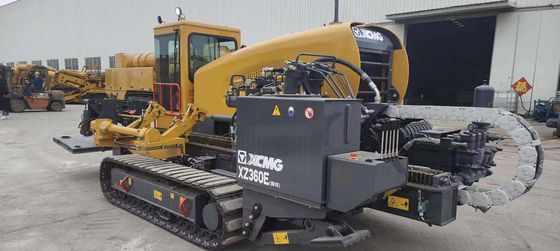

Precision Underground Directional Drilling Mesin Pengeboran Arah Horizontal Kuning

Tempat Asal:Cina

Nama merek:Rongchang Machinery

Jumlah Pesanan Minimum:1 PC

Harga:Dapat dinegosiasikan

Ketentuan Pembayaran:L/C, T/T, dll.

Detail Produk

Menyoroti:

pengeboran arah bawah tanah presisi

,

Pengeboran arah bawah tanah kuning

,

mesin pengeboran arah horizontal kuning

Deskripsi Produk

proyek	unit	XZ360F
mesin	-
daya nominal	kW/r/menit	154/2200
Maksimaldorongan&pullbackkekuatan	kN	380
Maksimaldorongan&pullbackkecepatan	m/menit	40
Torsi	N · m	14000
Kecepatan maksimum	r/menit	140
Aliran maksimum	L/menit	400
tekanan terbesar	MPa	8
Pipa bor	mm × m	φ73/76/83 × 3
Berat angkat	t	️
Saat angkat	t • m	️
Sudut penetrasi maksimum	°	20
kualitas	t	10
Dimensi	mm	6200 × 2280 × 2450
Perhatikan	-	Konfigurasi standar: 1. gudang mesin sederhana; 2. Semi-otomatis; Opsional: 1. pegangan otomatis; 2. penggantungan ganda; 3. kabin; 4. pendinginan dan pendinginan AC; 5. antibeku lumpur; 5.Berjalan tanpa kabel; 6.Lapiskan minyak benang;
