100ft-125ft kedalaman DigiTrak Falcon F5 Transmitter Alat pengeboran horizontal

Tempat Asal:Cina

Nama merek:Rongchang Machinery

Jumlah Pesanan Minimum:1 PC

Harga:Dapat dinegosiasikan

Ketentuan Pembayaran:L/C, T/T, dll.

Detail Produk

Menyoroti:

DigiTrak Falcon F5 pemancar

,

125 kaki kedalaman DigiTrak Falcon F5

,

100 kaki kedalaman DigiTrak Falcon F5

Deskripsi Produk

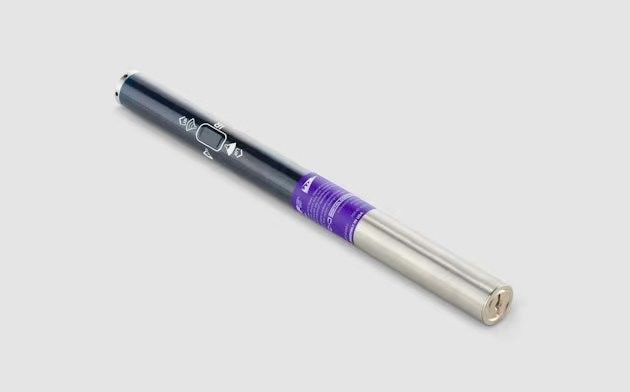

DigiTrak Falcon F5 pemancar dengan Multi-Power, Sub-k®, Tekanan Cairan, Full-Scale Sensitive Pitch, dan lebih dari 1000 frekuensi untuk membantu Anda menyelesaikan pekerjaan.dan panjang 8-in.

FT5 Transmitter

ID produk	FT5p	FT5Lp
Jangkauan kedalaman	100 kaki 30.5 m	125 kaki 38.1 m
Jangkauan Data	125 kaki 38.1 m	150 kaki 45.7 m
Frekuensi	4.5 sampai 45 kHz	4.5 sampai 45 kHz
Jenis Baterai (jam bangun/tidur)	2 C-cell alkali (20/200), atau 1 SuperCell (70/400)	1 SuperCell (40/300)
Suhu Maksimum	220° F 104° C	220° F 104° C
Panjang x Diameter	15 x 1,25 inci. 38.1 x 3,2 cm	19 x 1,25 inci. 480,3 x 3,2 cm
Berat badan	1.7 lb 771 g	2.0 lb 907 g

FT5 Rebar Transmitter

ID produk	FTR5s	FTR5p	FTR5Lp
Jangkauan kedalaman	25 kaki 7.62 m	65 kaki 19.8 m	80 kaki 24.4 m
Jangkauan Data	30 kaki 9.1 m	80 kaki 24.4 m	100 kaki 30.5 m
Frekuensi	.33 sampai 18 kHz	.33 sampai 18 kHz	.33 sampai 18 kHz
Jenis Baterai (jam bangun/tidur)	123 3V Lithium (hingga 12 jam)	2 C-cell alkali (20/200), atau 1 SuperCell (70/400)	1 SuperCell (40/300)
Suhu Maksimum	180° F 82° C	220° F 104° C	220° F 104° C
Panjang x Diameter	8 x 1.0 in. 200,3 x 2,54 cm	15 x 1,25 inci. 38.1 x 3,2 cm	19 x 1,25 inci. 480,3 x 3,2 cm
Berat badan	0.5 lb 240 g	1.7 lb 771 g	2.0 lb 907 g

Nama	ID	Warna
Falcon F5 24-in Broadband Transmitter	FT5XLp	Violet
Falcon F5+ 19-in Broadband Transmitter	FT5Lp	Violet
Falcon F5 15-in Wideband Transmitter	FT5p	Violet
Falcon F5 19-in Sub-k Rebar Transmitter	FTR5Lp	Hitam
Falcon F5 15-in Sub-k Rebar Transmitter	FTR5p	Hitam
Falcon F5 8-in Sub-k Rebar Transmitter	FTR5S	Warna abu-abu terang
